scanpy.pl.MatrixPlot#

class scanpy.pl.MatrixPlot(adata, var_names, groupby, *, use_raw=None, log=False, num_categories=7, categories_order=None, title=None, figsize=None, gene_symbols=None, var_group_positions=None, var_group_labels=None, var_group_rotation=None, layer=None, standard_scale=None, ax=None, values_df=None, vmin=None, vmax=None, vcenter=None, norm=None, **kwds)[source]#

Allows the visualization of values using a color map.

Parameters:
adata AnnData

Annotated data matrix.

var_names Union[str, Sequence[str], Mapping[str, Union[str, Sequence[str]]]]

var_names should be a valid subset of adata.var_names. If var_names is a mapping, then the key is used as label to group the values (see var_group_labels). The mapping values should be sequences of valid adata.var_names. In this case either coloring or ‘brackets’ are used for the grouping of var names depending on the plot. When var_names is a mapping, then the var_group_labels and var_group_positions are set.

groupby str | Sequence[str]

The key of the observation grouping to consider.

use_raw bool | None (default: None)

Use raw attribute of adata if present.

log bool (default: False)

Plot on logarithmic axis.

num_categories int (default: 7)

Only used if groupby observation is not categorical. This value determines the number of groups into which the groupby observation should be subdivided.

categories_order Sequence[str] | None (default: None)

Order in which to show the categories. Note: add_dendrogram or add_totals can change the categories order.

figsize tuple[float, float] | None (default: None)

Figure size when multi_panel=True. Otherwise the rcParam['figure.figsize] value is used. Format is (width, height)

dendrogram

If True or a valid dendrogram key, a dendrogram based on the hierarchical clustering between the groupby categories is added. The dendrogram information is computed using scanpy.tl.dendrogram(). If tl.dendrogram has not been called previously the function is called with default parameters.

gene_symbols str | None (default: None)

Column name in .var DataFrame that stores gene symbols. By default var_names refer to the index column of the .var DataFrame. Setting this option allows alternative names to be used.

var_group_positions Sequence[tuple[int, int]] | None (default: None)

Use this parameter to highlight groups of var_names. This will draw a ‘bracket’ or a color block between the given start and end positions. If the parameter var_group_labels is set, the corresponding labels are added on top/left. E.g. var_group_positions=[(4,10)] will add a bracket between the fourth var_name and the tenth var_name. By giving more positions, more brackets/color blocks are drawn.

var_group_labels Sequence[str] | None (default: None)

Labels for each of the var_group_positions that want to be highlighted.

var_group_rotation float | None (default: None)

Label rotation degrees. By default, labels larger than 4 characters are rotated 90 degrees.

layer str | None (default: None)

Name of the AnnData object layer that wants to be plotted. By default adata.raw.X is plotted. If use_raw=False is set, then adata.X is plotted. If layer is set to a valid layer name, then the layer is plotted. layer takes precedence over use_raw.

title str | None (default: None)

Title for the figure.

expression_cutoff

Expression cutoff that is used for binarizing the gene expression and determining the fraction of cells expressing given genes. A gene is expressed only if the expression value is greater than this threshold.

mean_only_expressed

If True, gene expression is averaged only over the cells expressing the given genes.

standard_scale Literal['var', 'group'] (default: None)

Whether or not to standardize that dimension between 0 and 1, meaning for each variable or group, subtract the minimum and divide each by its maximum.

values_df DataFrame | None (default: None)

Optionally, a dataframe with the values to plot can be given. The index should be the grouby categories and the columns the genes names.

kwds

Are passed to matplotlib.pyplot.scatter().

See also

matrixplot()

Simpler way to call MatrixPlot but with less options.

rank_genes_groups_matrixplot()

to plot marker genes identified using the rank_genes_groups() function.

Examples

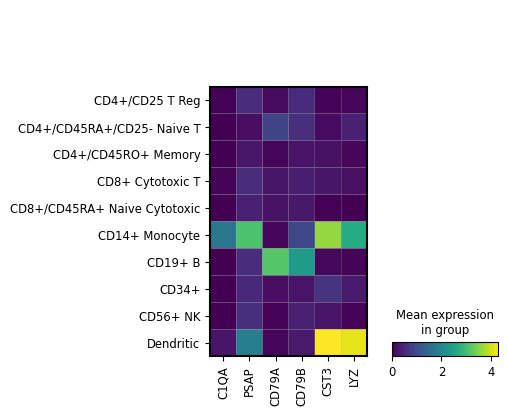

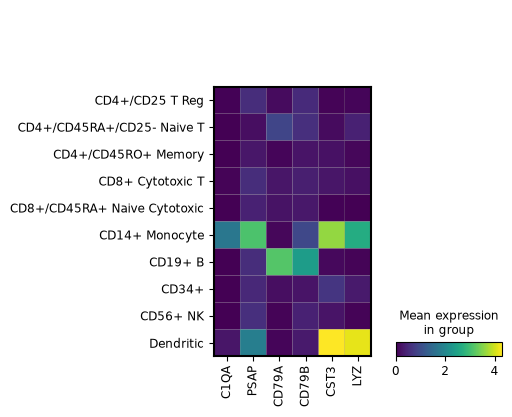

Simple visualization of the average expression of a few genes grouped by the category ‘bulk_labels’.

import scanpy as sc
adata = sc.datasets.pbmc68k_reduced()
markers = ['C1QA', 'PSAP', 'CD79A', 'CD79B', 'CST3', 'LYZ']
sc.pl.MatrixPlot(adata, markers, groupby='bulk_labels').show()
../../../_images/scanpy-pl-MatrixPlot-1.png

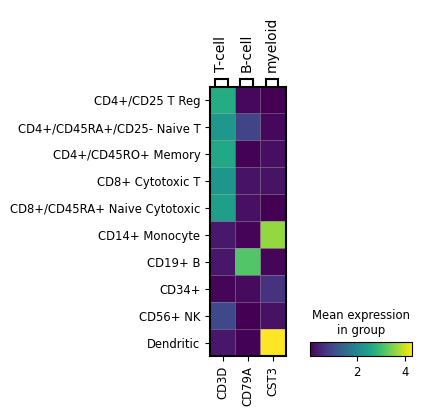

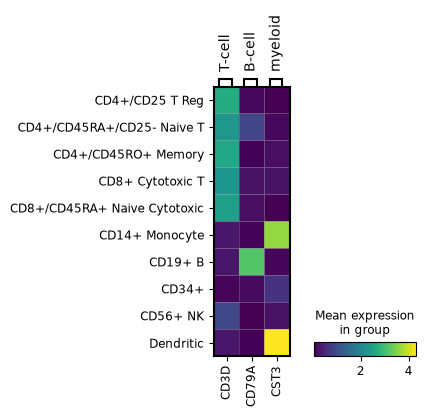

Same visualization but passing var_names as dict, which adds a grouping of the genes on top of the image:

markers = {'T-cell': 'CD3D', 'B-cell': 'CD79A', 'myeloid': 'CST3'}
sc.pl.MatrixPlot(adata, markers, groupby='bulk_labels').show()
../../../_images/scanpy-pl-MatrixPlot-2.png

Attributes

DEFAULT_CATEGORY_HEIGHT

DEFAULT_CATEGORY_WIDTH

DEFAULT_COLORMAP

DEFAULT_COLOR_LEGEND_TITLE

DEFAULT_EDGE_COLOR

DEFAULT_EDGE_LW

DEFAULT_LEGENDS_WIDTH

DEFAULT_SAVE_PREFIX

DEFAULT_WSPACE

MAX_NUM_CATEGORIES

MIN_FIGURE_HEIGHT

Methods

add_dendrogram([show, dendrogram_key, size])

add_totals([show, sort, size, color])

get_axes()

rtype:

dict[str, Axes]

getdoc()

legend(*[, show, title, width])

make_figure()

Renders the image but does not call matplotlib.pyplot.show().

savefig(filename[, bbox_inches])

Save the current figure

show([return_axes])

Show the figure

style([cmap, edge_color, edge_lw])

Modifies plot visual parameters.

swap_axes([swap_axes])

Plots a transposed image.
